Woodruff keys NFE 22179

Gardette - woodruff-keys-nfe-22179

Feature selection


Discover our special range of exotic raw material on Exofix.uk.com
(titane, duplex, monel, inconel, ...)
Norms - woodruff keys
Material - woodruff keys
Length - woodruff keys
Width - woodruff keys
Height - woodruff keys
Tolerances - woodruff keys
Quantity :

Main Features Standard

Woodruff keys (NFE 22179)

Designation : Woodruff keys
Usual standards : NFE22179
Standard material : Steel C45 50kg/mm² minimum
Comments : Edge smoothed by tumbling. Many possible materials.

See the boxed set of keys

Material = C45

cote métrique





Material = C45

cote pouce

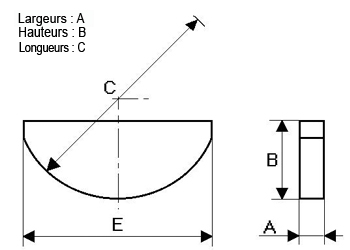

A

h9

B

h11

C

h11

E

h11

A

h9

B

h11

C

h11

E

h11

2 2,6 7   3 5,15 12,7
2,5 3,7 10 9,0 3 7,91 19,05
3 3,7 10 9,0 3,17 5,15 12,7
3 5 13 11,5 3,17 6,35 15,8
3 6,5 16 15,0 3,97 6,35 15,8
4 5 13 11,5 3,97 7,91 19,05
4 6,5 16 15,0 3,97 9,52 22,2
4 7,5 19 17,5 4,76 7,91 19,05
5 6,5 22 15,0 4,76 9,52 22,2
5 7,5 22 17,5 4,76 11,11 25,4
5 9 25 20,5 4,76 12,3 28,6
6 9 28 20,5 6,35 9,52 22,2
6 10 32 23,0 6,35 11,11 25,4
6 11 28 25,5 6,35 13,8 31,7
6 13 32 30,0 7,94 11,11 25,4
8 11 28 25,5 7,94 12,3 28,6
8 13 32 30,0
8 15 38 35,0
8 16 45 41,0
10 16 45 41,0
10 19 65 56,0
12 19 65 56,0
12 24 80 70,0

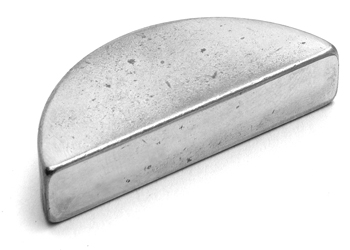

Non-contractual photos
